IP66 Easy fit Range
Industrial
Height (mm)
60
60
Length (mm)
600 - 1800
600 - 1800
System Power (W)
19 - 73
19 - 73
Width (mm)
100
100
Product Description

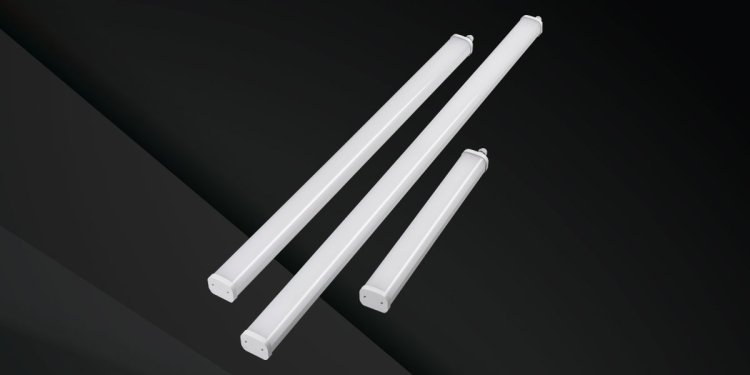

A range of highly durable IP66 slim profile luminaires designed with LED modules. They are suitable for general lighting in carparks, garages and commercial applications.
Key Features
- 4000k supplied as standard, 3000k or 6000k as special order
- Internally through wired with connectors at both ends
- Supplied with one end glanded and blank end. Additional pack with extra gland and open endcap supplied in box also.
Available Specification
Bulb Type | SMD LED |
Height (mm) | 60 |
Length (mm) | 600 1200 1500 1800 |
Lumen Output (lm) | 2400lm 4830lm 3540lm 6875lm 8070lm 9215lm |
Lumen per Circuit Watt | > 125 > 130 |
System Power (W) | 19 36 27 55 61 73 |
Width (mm) | 100 |
Files
Technical Datasheet |
Products
Code | Height (mm) | Length (mm) | System Power (W) | Width (mm) | Files | |
|---|---|---|---|---|---|---|
60 | 600 | 19 | 100 | |||
60 | 1200 | 36 | 100 | |||
60 | 1500 | 27 | 100 | |||
60 | 1500 | 55 | 100 | |||
60 | 1500 | 61 | 100 | |||
60 | 1800 | 73 | 100 |
Interested in the IP66 Easy fit Range?
Please contact us and we'll be happy to help.
