BAT Batten Range

Name: 3E
Address: 3E House, Strixton Manor Business Park, Strixton, NN29 7PA, GB
Telephone: 01933 665590

Commercial Surface / Suspended

Height (mm)
40

Length (mm)
640 - 1840

System Power (W)
1 x 18 - 2 x 9

Width (mm)
48

Product Description

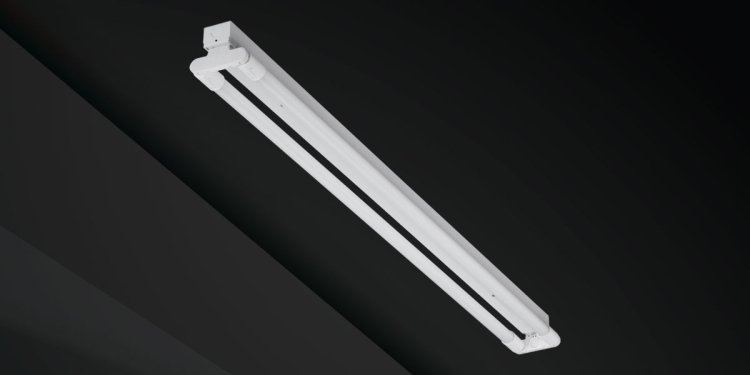

A range of LED surface batten luminaires designed to accommodate T8 LED lamps. They are suitable for general lighting in retail and commercial applications.

Key Features

Full range of accessories available
Lamps provided are non dimmable versions and have 330 degree light output
Lumen outputs will vary according to lamp colour temp.
Supplied with lamps, but /B models are less lamps

Available Specification

Bulb Type	T8 LED lamp
Height (mm)	40
Length (mm)	640 1240 1540 1840
Lumen Output (lm)	800lm 1600lm 1800lm 3600lm 2300lm 4600lm 2600lm 5200lm
Lumen per Circuit Watt	> 85
System Power (W)	1 x 9 2 x 9 1 x 18 2 x 18 1 x 24 2 x 24 1 x 28 2 x 28
Width (mm)	48

Files

Technical Datasheet

Products

Code	Height (mm)	Length (mm)	System Power (W)	Width (mm)
BAT2SLED 2ft single batten with LED lamp - BAT2SLED	40	640	1 x 9	48
BAT2SLED/S 2ft single batten wired for single ended LED lamp - BAT2SLED/S	40	640	-	48
BAT2TLED 2ft twin batten with LED lamps - BAT2TLED	40	640	2 x 9	48
BAT2TLED/B 2ft twin batten wired for single ended LED lamps - BAT2TLED/B	40	640	-	48
BAT4SLED 4ft single batten with LED lamp - BAT4SLED	40	1240	1 x 18	48
BAT4SLED/B 4ft single batten wired for single ended LED lamp - BAT4SLED/B	40	1240	-	48
BAT4TLED 4ft twin batten with LED lamps - BAT4TLED	40	1240	2 x 18	48
BAT4TLED/B 4ft twin batten wired for single ended LED lamps - BAT4TLED/B	40	1240	-	48
BAT5SLED 5ft single batten with LED lamp - BAT5SLED	40	1540	1 x 24	48
BAT5SLED/B 5ft single batten wired for single ended LED lamp - BAT5SLED/B	40	1540	-	48

Showing 1 - 10 of 16

Rows Per Page
