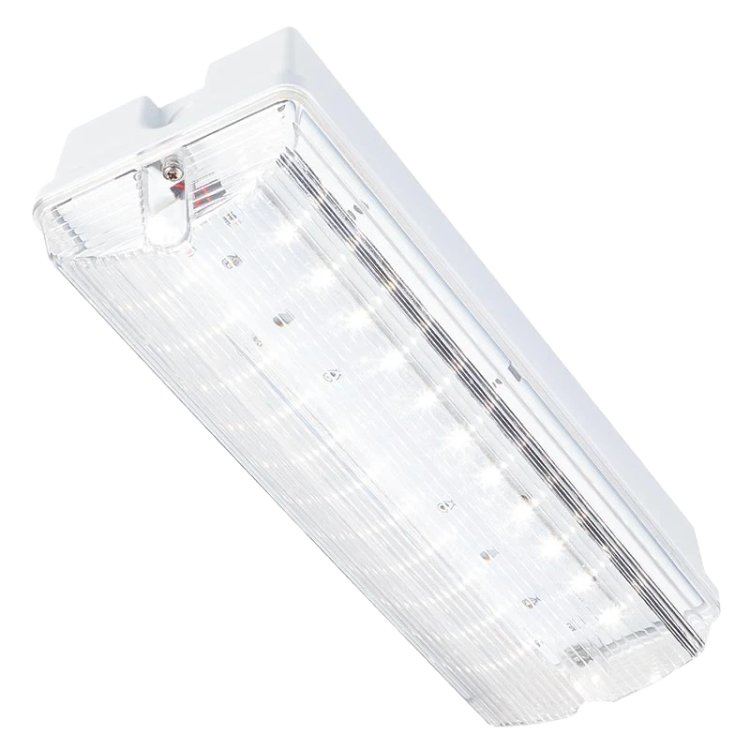

Aviator-HO LED IP65 high light output luminaires
Emergency
Colour (K)
4500K
4500K
Height (mm)
90
90
Length (mm)
350
350
Width (mm)
120
120
Product Description
Aviator-HO luminaires are available with mains only or Non-Maintained emergency operation. All emergency versions provide 3 hour duration from integral high temperature Nickel Cadmium (NiCd) batteries.SurePathAviator-HO luminaires can be equipped with SurePath BLE Bluetooth addressable Gateway modules.The luminaires fully comply to the requirements of EN60598.2.22.
Key Features
- IP rating: IP65
- Ambient temperature (Ta): 25°C
- Insulation class: Class I
- Supply voltage: 230V +/- 10% ~ 50 Hz
- Product: IP65 rated Bulkhead
- Geartray: Hinged white painted steel
- Cable Entry: 20mm entries in back and ends
Available Specification
Bulb Type | 2 x LED strip PCBs |
Colour (K) | 4500K |
Finish | Off-white polycarbonate base and clear fresnel lens |
Height (mm) | 90 |
Length (mm) | 350 |
Lumen Output (lm) | 800lm (emergency) |
Width (mm) | 120 |
Files
Technical Datasheet | |
Photometric Data |
Products
Code | Colour (K) | Height (mm) | Length (mm) | Width (mm) | Files | |
|---|---|---|---|---|---|---|
4500K | 90 | 350 | 120 | |||
4500K | 90 | 350 | 120 | |||
4500K | 90 | 350 | 120 | |||
4500K | 90 | 350 | 120 |
Interested in the Aviator-HO LED IP65 high light output luminaires?
Please contact us and we'll be happy to help.
